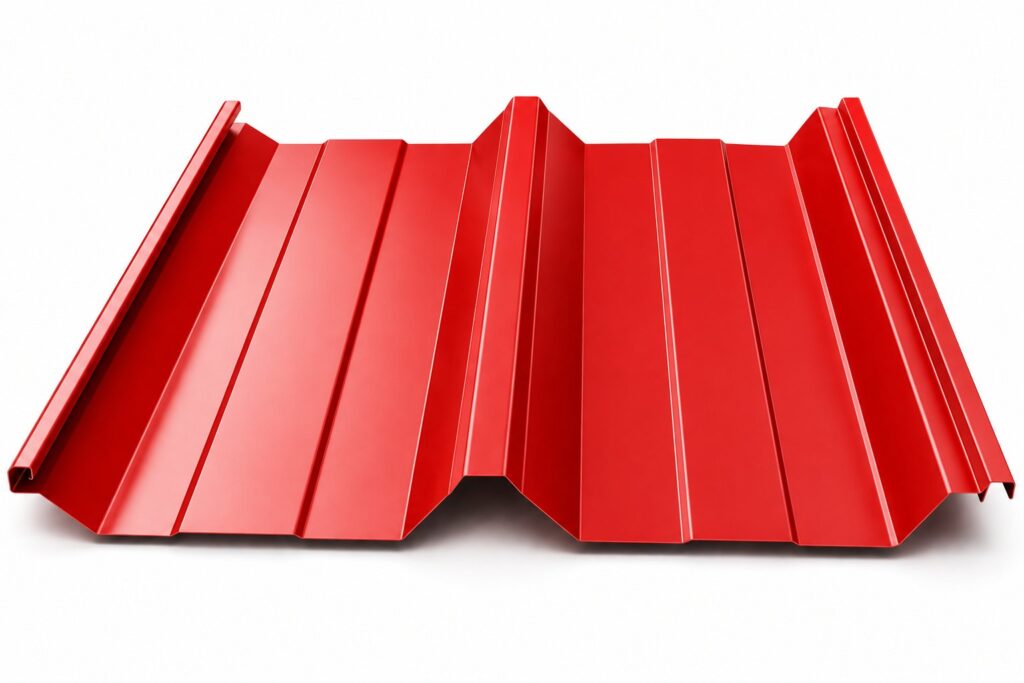

Corrugated Steel Roofing Profile

Classic corrugated and trapezoidal profile in PPGI or Galvalume — the workhorse of industrial roofing. Fast to install, easy to replace, decades of proven performance across warehouses, factories and workshops.

Material

PPGI / Galvalume

Profile Range

26 Standard Models

Cover Width Range

470 – 900 mm

Minimum Roof Slope

≥ 1:20 (2.86°)

Service Life

15–20 years (PPGI)

All 26 standard profiles — full structural data

#	Model	Width (mm)		t (mm)	Section Properties		Usage
#	Model	cover	coil	t (mm)	I (cm⁴/m)	W (cm³/m)	Usage
1	U470	470	600	0.5	12.03	5.02	Roof
2	U470	470	600	0.6	14.31	6.02	Roof
3	YX66-394-788	788	1000	0.5	27.66	9.45	Roof
4				0.6	34.98	10.99
5				0.8	42.06	14.38
6	YX51-380-760	760	1000	0.6	37.53	12.41	Roof
7				0.8	49.71	6.52
8				1.0	62.14	20.59
9	YX54-410-820	820	1000	0.5	32.05	11.05	Roof
10				0.6	38.27	12.93
11				0.8	50.05	17.40
12	YX25-210-840	840	1000	0.5	9.18	4.68	Roof / Wall
13	YX25-210-840	840	1000	0.8	14.59	7.47	Roof / Wall
14	YX28-205-820	820	1000	0.5	10.28	5.24	Roof / Wall
15				0.6	12.05	6.33
16				0.8	16.34	8.37
17	YX25-205-820	820	1000	0.5	8.60	4.22	Roof / Wall
18	YX25-205-820	820	1000	0.6	10.12	5.32	Roof / Wall
19	YX35-125-750	750	1000	0.5	11.54	6.23	Roof / Wall
20	YX35-125-750	750	1000	0.6	13.85	7.48	Roof / Wall
21	YX32-210-840	840	1000	0.5	10.23	9.20	Roof / Wall
22				0.6	12.29	10.75
23				0.8	16.38	14.71
24	YX35-280-840	840	1000	0.5	10.32	8.81	Roof / Wall
25				0.6	11.17	10.57
26				0.8	15.77	14.21
27	YX15-225-900	900	1000	—	—	—	Roof / Wall
28	YX12-65-850	850	1000	—	—	—	Roof / Wall
29	YX30-160-800	800	1000	—	—	—	Roof / Wall
30	YX10-32-864	864	1000	—	—	—	Roof / Wall
31	YX130-300-600	600	1000	—	—	—	Roof
32	YX35-130-780	780	1000	—	—	—	Roof / Wall
33	YX12-110-880	880	1000	—	—	—	Roof / Wall
34	YX19-64-820	820	1000	—	—	—	Roof / Wall
35	YX10-105-840	840	1000	—	—	—	Roof / Wall
36	YX51-380-760	760	1000	—	—	—	Roof
37	YX28-205-820 (Arc)	820	1000	—	—	—	Roof
38	YX10-32-864	864	1000	—	—	—	Roof / Wall
39	YX25-210-840 (Decorative)	840	1000	—	—	—	Roof
40	YX28-207-828 (Decorative)	828	1000	—	—	—	Roof
41	YX15-225-900	900	1000	—	—	—	Roof / Wall
42	YX51-250-750	750	1000	—	—	—	Roof / Wall

Reading the table: Items 1–26 are thickness variants of the 10 primary load-bearing profiles, each with full structural section data (I = section inertia, W = section resistance). Items 27–42 are 16 specialty profiles for decorative, arched and lightweight applications where the cover-width geometry is the primary spec — structural values are not published. | Custom profiles: Vikkins operates 60+ production lines with daily output of 3,000 m². Bespoke profiles available on request — minimum order quantities apply.

Montreal Office

Canada Operations

Beijing HQ

China Manufacturing

EN · ES · FR · CN

Send Email

WhatsApp

Corrugated Steel Roofing Profile

Classic corrugated and trapezoidal profile in PPGI or Galvalume — the workhorse of industrial roofing. Fast to install, easy to replace, decades of proven performance across warehouses, factories and workshops.

Material

Profile Range

Cover Width Range

Minimum Roof Slope

Service Life

All 26 standard profiles — full structural data

The all-purpose industrial roof sheet

01

Factories & Workshops

Quick-install profile for industrial sheds, manufacturing plants and production halls.

02

Warehouses

Cost-effective long-span coverage for logistics centres and distribution warehouses.

03

Agricultural Buildings

Barns, livestock shelters and grain stores — durable PPGI in custom colours.

04

Labour Camps & Site Huts

Rapid-deployment roofing for prefabricated accommodation and site offices.

Need full project specifications?

Send drawings, climate zone and finish preferences — we'll send a fully-engineered corrugated roof package back within 48 hours.
