The steel structure system is the structural backbone of modern industrial and commercial construction. VIKKINS delivers a complete, engineered package — from primary portal frame to secondary purlins, wall girts, bracing, and all accessories — combining high strength, lightweight performance, efficient installation, and significantly reduced construction periods. Applied across warehouses, workshops, cold storage, offices, hotels, labour camps, schools, and more.
System Performance at a Glance
9–180m
跨度范围
6
框架系统
32T
Max Crane
SA2.5
Shot Blast
90+
Countries
14
Mfg Steps
What Is a Steel Structure System?
A steel structure system is a complete, engineered framework of primary and secondary structural members forming the load-bearing skeleton of a building. Fabricated off-site to precise tolerances and delivered as a bolt-together package — no curing time, no formwork, no wet trades required.
Q235 and Q345 structural steel grades deliver tensile strength of 235–345 MPa, yet weigh a fraction of equivalent concrete. This means lighter foundations, faster erection, longer achievable spans, and a building that can be expanded or modified throughout its life.

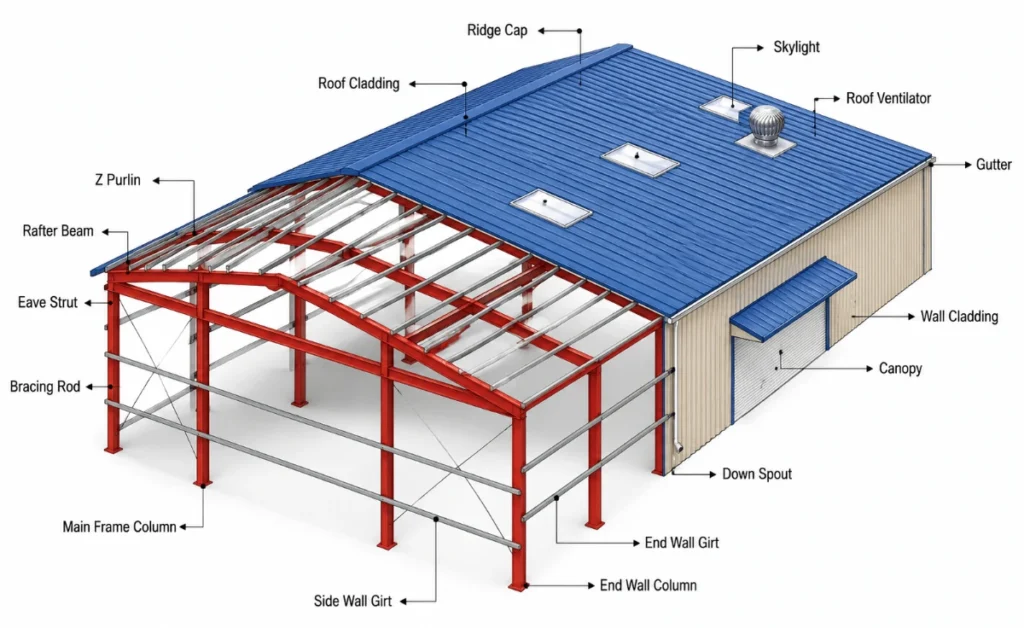

Roof System: Components and Functions
The roof system is the primary weather barrier and thermal envelope. Every component serves a specific structural or performance function.
Roof Cladding
Corrugated steel sheets providing weather resistance and long-term durability against rain, wind, and UV.
Ridge Cap
Covers the roof apex to prevent water ingress and enhance long-term weathertight durability.
Z型檩条
Horizontal members spanning between rafter beams, supporting roof cladding and transferring loads to the primary frame.
Rafter Beam
Primary structural members following the roof slope, supporting the purlin system and transferring loads to frame columns.
Eave Strut
Supports the eave purlin and provides structural connection for the roof edge, tying roof and wall systems together.
Roof Ventilator
Enhances natural airflow and reduces heat and moisture buildup — critical for workshops and production facilities.
Skylight
Allows natural daylight into the building interior, reducing artificial lighting requirements and improving working conditions.
Gutter & Down Spout
Collects rainwater from the roof and directs it to ground drainage, protecting the foundation and site from water accumulation.

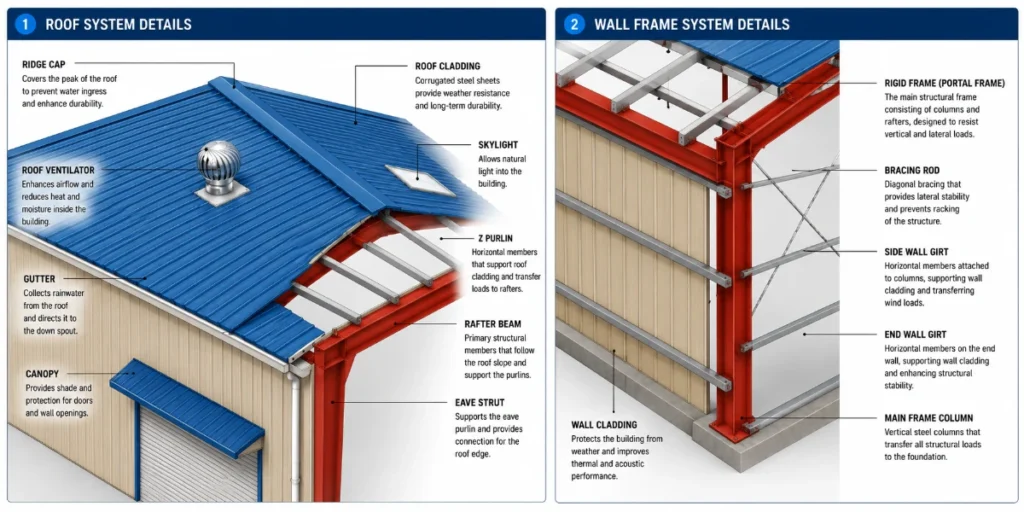

Wall Frame System: Components and Functions
The wall frame system transfers lateral wind and seismic loads while providing structural support for wall cladding.
Rigid Frame (Portal Frame)
Main structural frame of columns and rafters, designed to resist both vertical gravity loads and lateral wind and seismic loads.
Main Frame Column
Vertical steel columns collecting all structural loads from the roof and transferring them to the building’s foundation.
End Wall Column
Columns at building end walls, supporting the gable frame and end wall cladding against wind pressure.
Side Wall Girt
Horizontal members attached to side wall columns, supporting wall cladding panels and transferring wind loads into the primary frame.
End Wall Girt
Horizontal members on end walls supporting end wall cladding and enhancing overall structural stability of the gable ends.
Bracing Rod
Diagonal tension rods providing lateral stability, preventing racking of the building under wind or seismic loads.
Wall Cladding
Protects the building from weather while improving thermal and acoustic performance — single-skin or insulated sandwich panel.
Canopy
Provides shade and weather protection over doors and wall openings, protecting the building entrance from direct rain.
C and Z purlins span between primary rafters to support roof and wall cladding. Z purlins interlock for continuous spans with higher load capacity — preferred for longer bay spacings. Material: Q235 steel.
类型
Height Range
Thickness
单位重量
Inertia Jx
C Purlin
80–450mm
2.5–3.0mm
3.93–16.25 kg/m
46.22–5,650 cm⁴
Z型檩条
140–200mm
2.5–3.0mm
5.89–8.48 kg/m
217.26–578.47 cm⁴

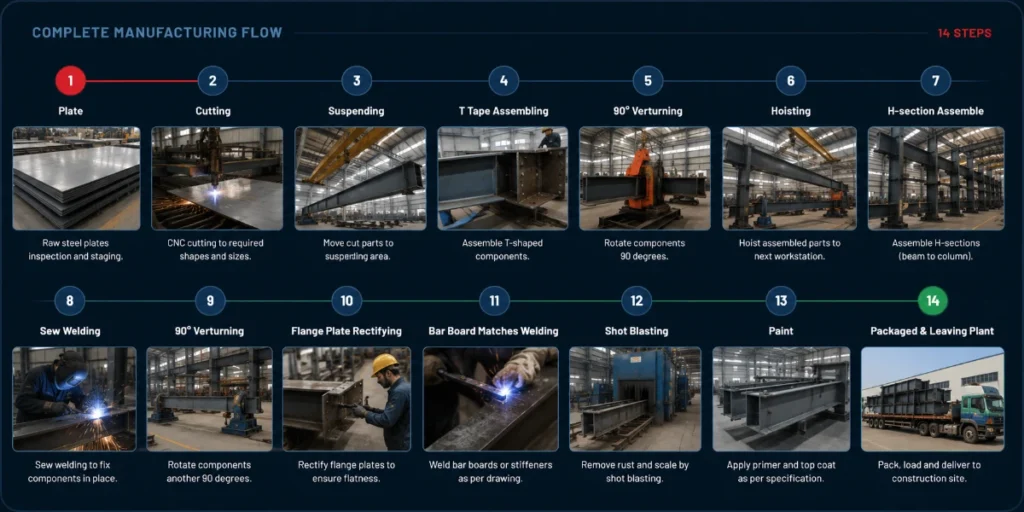

14-Step Manufacturing Process
Every VIKKINS H-beam structural member passes through a 14-step manufacturing process — from raw plate inspection through CNC cutting, assembly, welding, SA2.5 shot blasting, painting, to final packaged delivery.
完整的制造流程
14 个步骤
1
图版
Raw plate inspection
2
切割
CNC cutting to size
3
暂停
Move to assembly
4
T型胶带组装
T-shaped assembly
5
90° 转向
Rotate 90°
6
起重
Hoist to next station
7
H型钢组装
Beam to column
8
Sew Welding
Fix in place
9
90° 转向
Rotate another 90°
10
Flange Plate Rectifying
Ensure flatness
11
Bar Board Matches Welding
Weld stiffeners
12
Shot Blasting
Remove rust SA2.5
13
Paint
Primer + top coat
14
Packaged & Leaving Plant
Pack, load & deliver
Frame Systems — Select by Application
Frame Type
跨度
高度
Key Feature
Best For
门式框架
9–18m
3–7m
Uniform cross-section, local haunching
Small workshops, storage
起重机框架
12–24m
3–8m
Crane capacity up to 32T
Heavy manufacturing, machinery
可变框架
18–36m
3–9m
Variable cross-section, high-strength bolt
Large warehouses, logistics
夹层框架
12–24m
6–10m
Integrated insulated panel system
Cold storage, offices, hotels
混合部分
9–18m
3–8m
Uniform column, variable beam
Labour camps, compact units
超大跨度
72–180m
3–8m
Mid-span wobble columns to 180m
Hangars, arenas, logistics hubs
Application Matrix
Application
Recommended Frame
Typical Span
Key Requirement
Warehouse
Variable / Super Long Span
24–180m
Maximum clear floor area
Workshop
Crane / Variable Frame
18–36m
Crane capacity, heavy loading
冷藏库
夹层框架
12–24m
Thermal envelope, vapour control
Office Building
Sandwich / Mixed Section
12–24m
Multi-storey, architectural finish
Hotel
夹层框架
12–24m
Speed, room layout flexibility
Labour Camp
Portal / Mixed Section
9–18m
Rapid deployment, cost efficiency
School / Public Building
Variable / Sandwich Frame
18–36m
Large open spans, low maintenance
Hangar / Arena
超大跨度
72–180m
Maximum span, structural efficiency
“From a 9m workshop to a 180m clear-span logistics centre — the VIKKINS steel structure system scales to any project, in any climate, on any continent.”
Why VIKKINS Steel Structure System
With production bases in Cangzhou and Harbin, Canadian operational management, and delivery to more than 90 countries, VIKKINS combines manufacturing scale and cost efficiency with the quality management standards that global clients demand — holding ISO 9001, ISO 14001, and ISO 45001 certification.
Every project is supported by complete structural drawings, erection manuals, and material schedules. For full specifications, visit vikkins.com/products/steel-structure-system.
